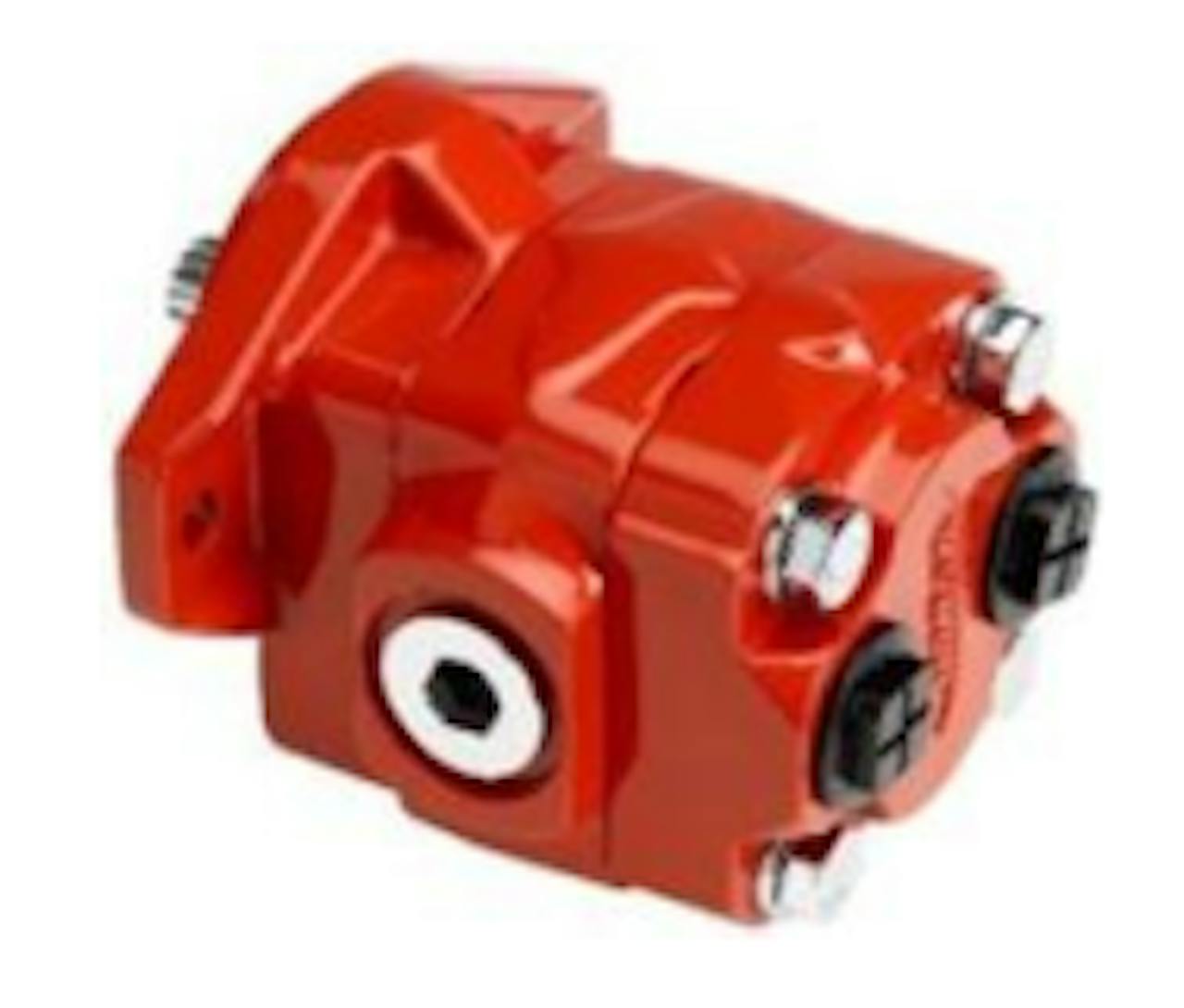

Muncie PK Series Gear Pump PK11102BPBB

PK Series Gear Pump Designed to meet the application needs of either a pump or a motor with displacement between 4 GPM and 17 GPM at 1000 RPM

Features and Benefits

• Features 7 pump sizes (4, 6, 8, 11, 13, 15, 17 GPM @ 1000 RPM)
• Pressure up to 3000 PSI
• Speeds up to 3600 RPM
• All cast iron construction for a longer life and high capacity psi
• Solid, one piece shafts
• 4 shaft types & 4 mounting flanges

Common applications include:

• Snow and ice control
• Utility line trucks
• Refuse equipment
• Low boys
• Live floor trailers
• Transfer trailers

Specifications

• Displacement (cu. in/rev): .98 - 3.94
• Maximum Operating Pressure (PSI): 3000
• Input Shaft Options: 4
• S.A.E. Mounting Flange: A, B
• Other Mounting Options: Remote pad
• Cloverleaf mount Porting: N.P.T or S.A.E. (side and rear)

Call and ask for Scott V regarding specific applications for hydraulics, pumps, and PTOs! If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990
