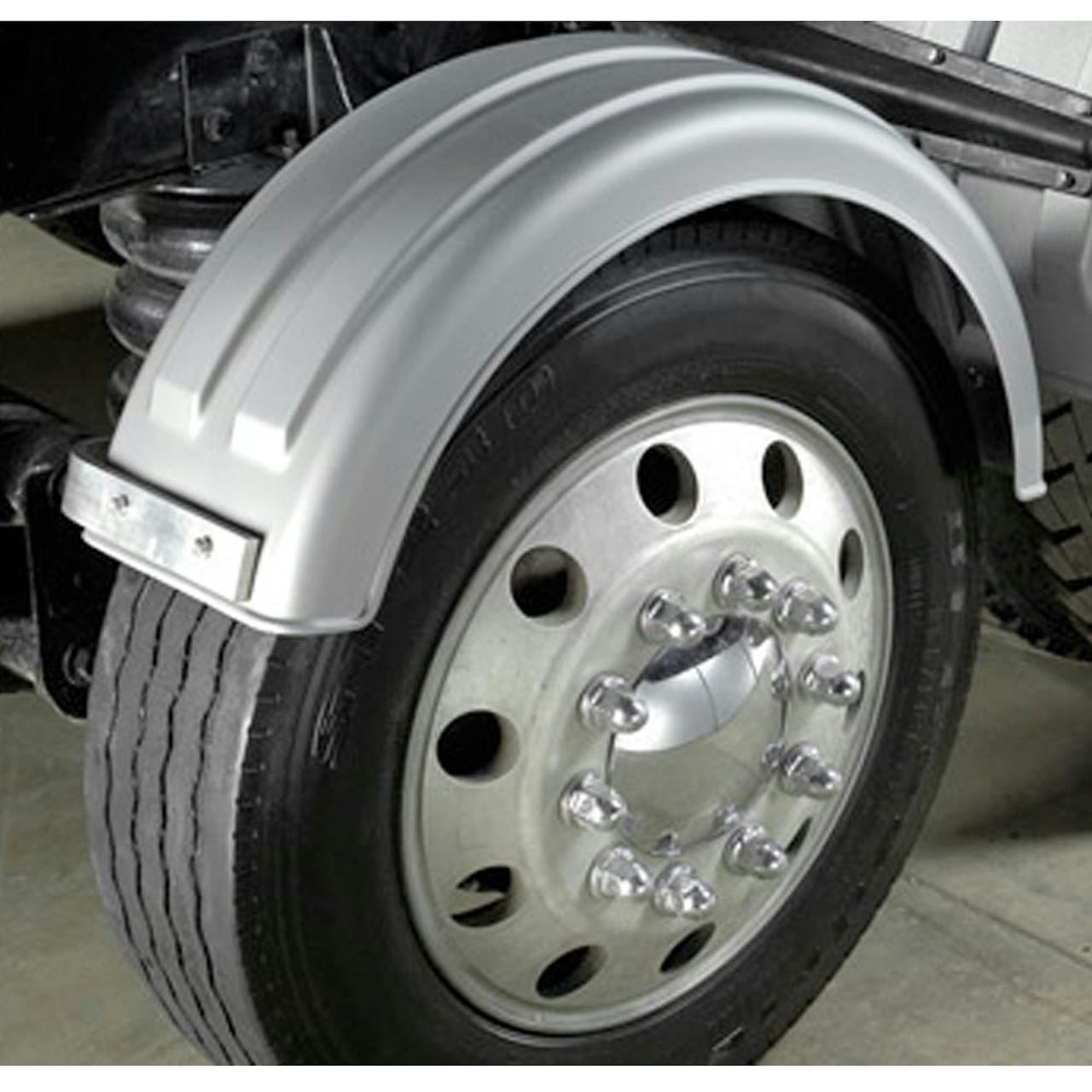

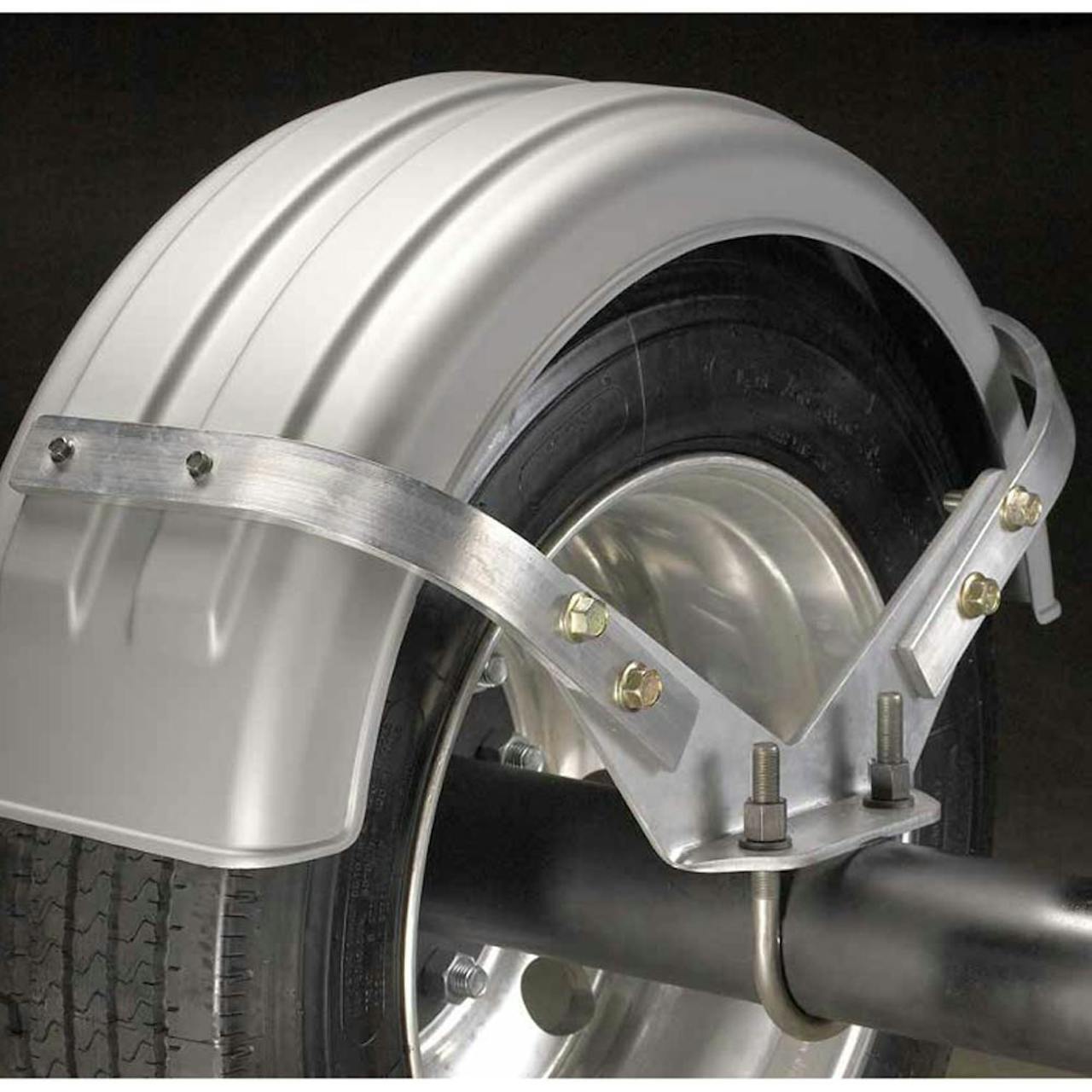

  • Lift Axle Fender Mounting Bracket Kit - Fender Installed Over

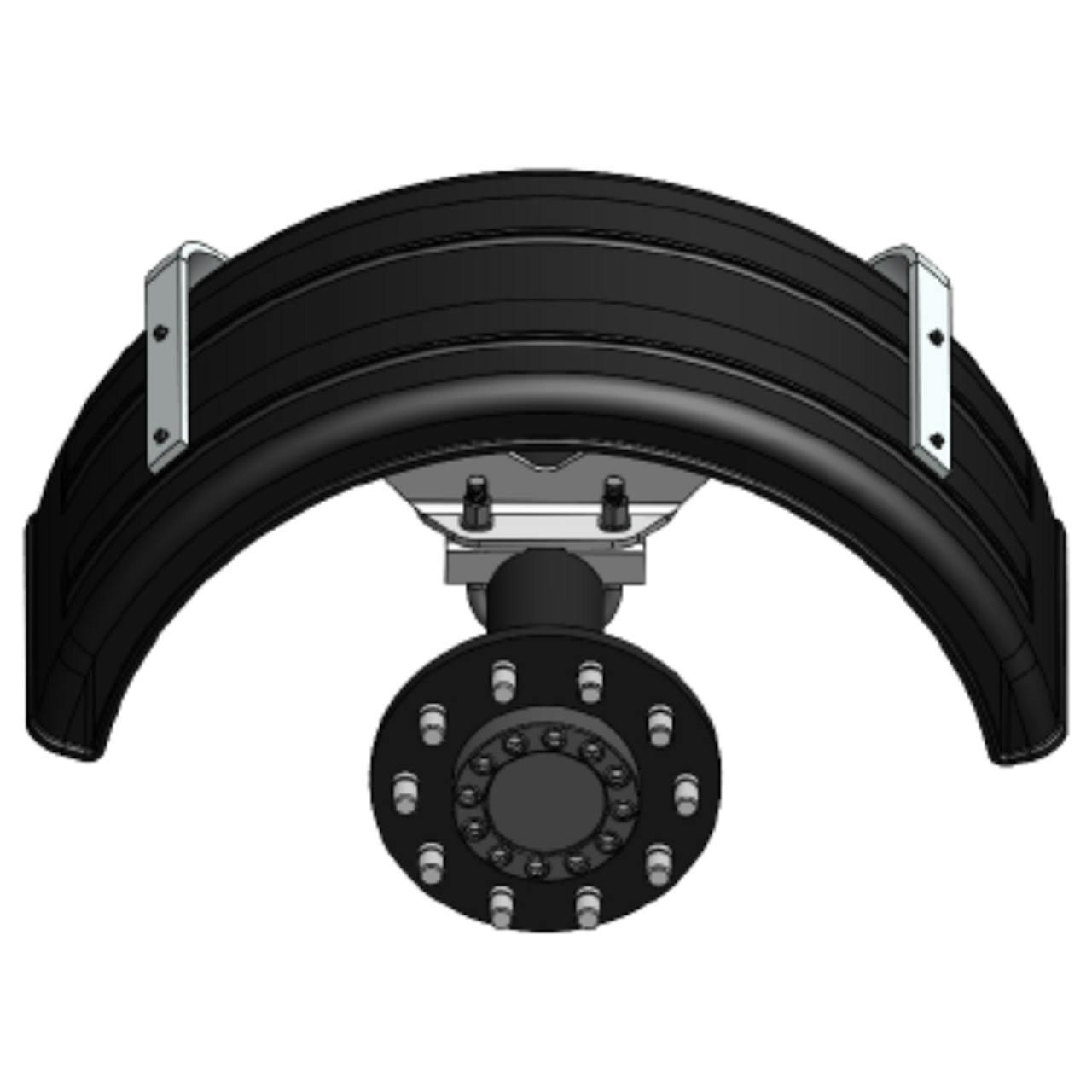

  • Minimizer Non-Steerable Lift Axle Bracket Kit with Single Wheel - Side View Installed over

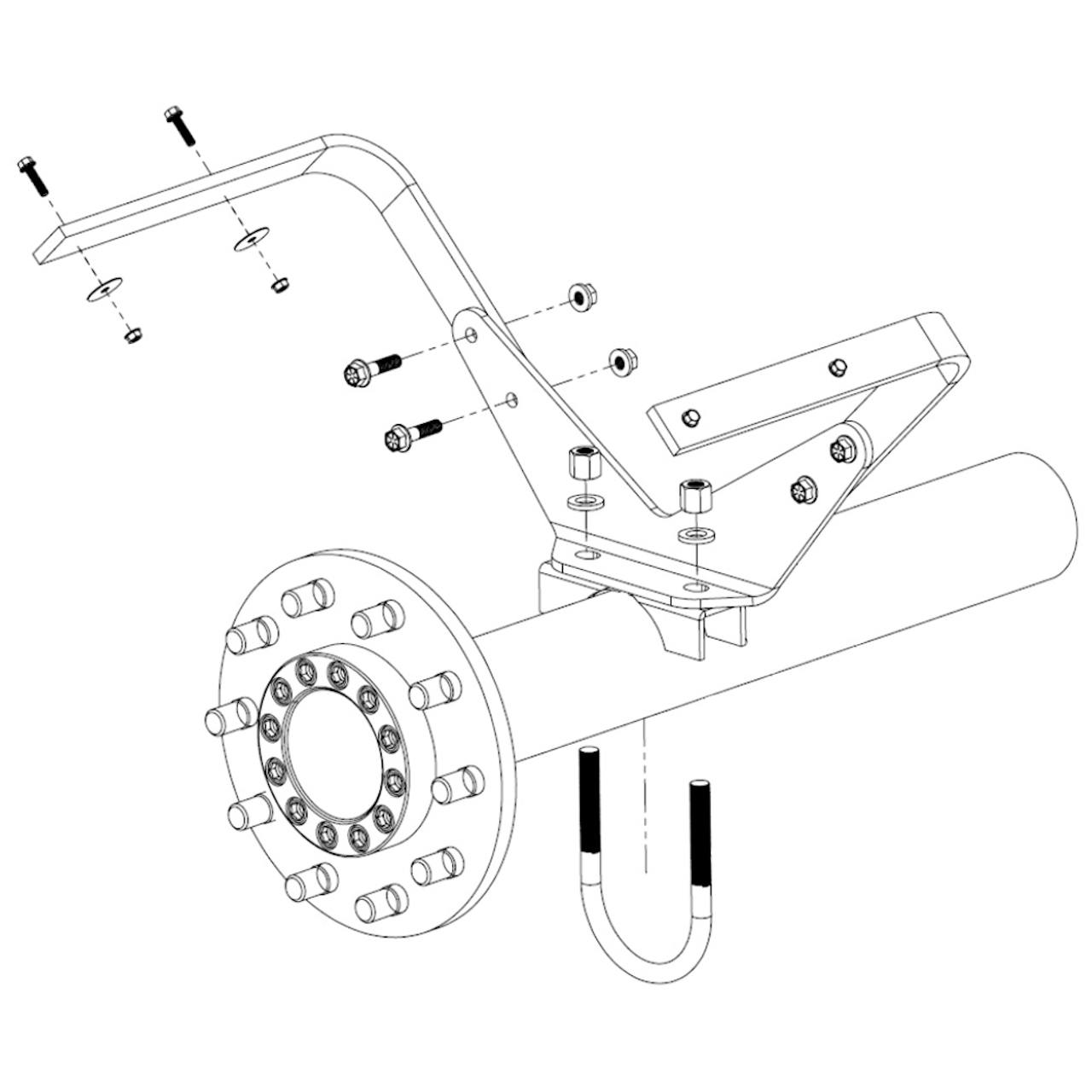

  • Minimizer Non-Steerable Lift Axle Bracket Kit with Single Wheel - Kit diagram Over fender

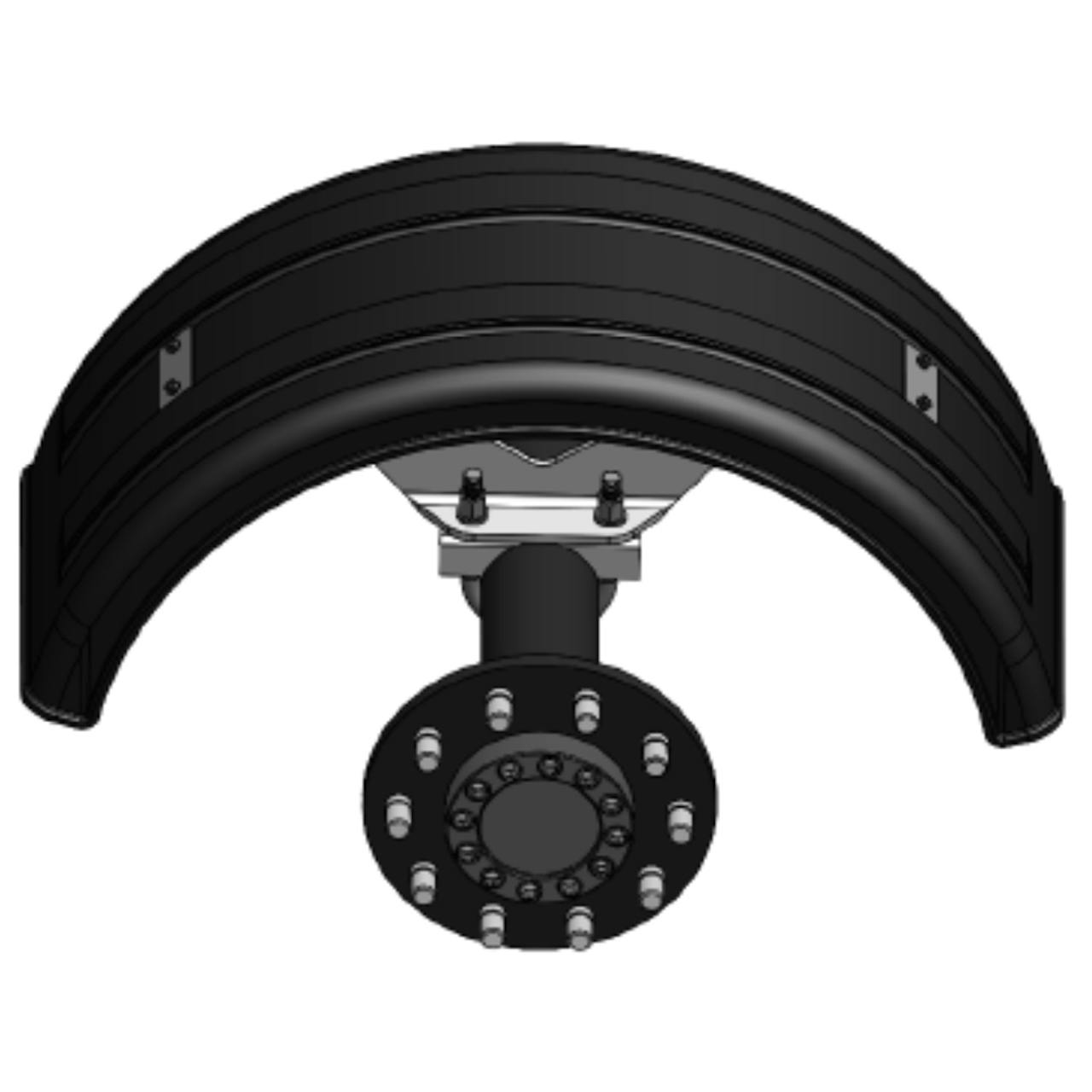

  • Minimizer Non-Steerable Lift Axle Bracket Kit with Single Wheel - Fender installed under
  • Minimizer Non-Steerable Lift Axle Bracket Kit with Single Wheel - Side View Fender Installed under

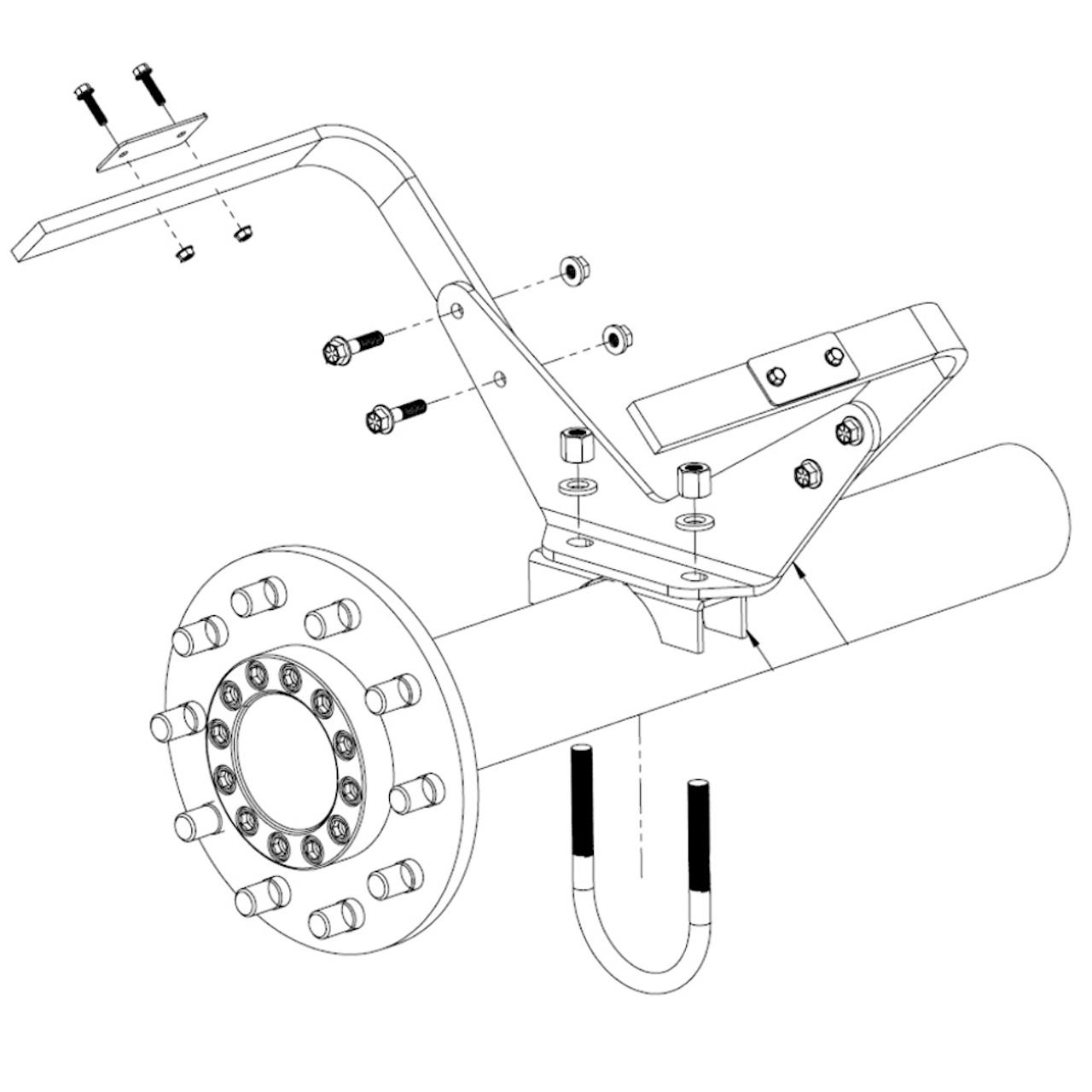

  • Minimizer Non-Steerable Lift Axle Bracket Kit with Single Wheel - Kit diagram Under Fender

Minimizer Non-Steerable Lift Axle Bracket Kit with Single Wheel

$823.95

Order Now, Pay Later with Affirm Logo Learn more
SKU:
MNZ10001441
Condition:
New
In Stock!* In Store pick-up must be scheduled
SKU:
MNZ10001441

Description


Minimizer Non-Steerable Lift Axle Bracket Kit with Single Wheel

*Does not fit Duals

*Fender Image is for Reference Only. Fender is Not Included.

Secure your fender with the Minimizer Non-Steerable Lift Axle Bracket Kit for single-wheel applications. Fits 5” round axle tubes. Order now for a reliable setup!

  • Non-Steerable Lift Axle Bracket for Fenders
  • Fits 5” Round Lift Axle Tubes Only
  • Single Wheel Application
  • Compatible with Select Minimizer Fenders:
    • MIN221800 (Fits Tire Sizes of 255 - 385)
    • MIN2220 (Fits Tire Sizes 385 or Larger)
  • Kit Includes:
    • Short Arm Brackets
    • Axle Brackets
    • Saddle Brackets
    • U-Bolt
    • Installation Hardware
  • Fender Can Be Installed Under or Over the Brackets
  • Sold As a Kit

Built for reliability and versatility, this Minimizer Non-Steerable Lift Axle Bracket Kit is designed specifically for single-wheel applications on 5” round lift axle tubes. The complete kit includes short arm brackets, axle brackets, saddle brackets, a U-bolt, and installation hardware, ensuring a secure and hassle-free setup. The fender can be mounted either above or below the brackets, providing flexibility to meet your specific installation needs. Ideal for heavy-duty trucks, this bracket kit delivers a stable and durable mounting solution.

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

View AllClose

Warranty Information

Standard Fender Products Warranty

Minimizer Steerable Axle brackets are designed for use only with Minimizer poly fenders. Bracket Warranty is void if attached to a fender that is not Minimizer brand.

A.1 MINIMIZER warrants that, as long as the products remain on the original vehicle, and are owned by the original purchaser of the MINIMIZER product, for the useful life of the Minimizer Fender (i) all polyethylene components will be free from defects in material and workmanship, including free from rust and corrosion; and (ii) the standard four set primary colors described in the catalogue, and on the web site, will be free from all color shifts.

A.2 MINIMIZER warrants that paint film used on standard fender products will be free from defects in material and workmanship, subject to the exclusions below, for three (3) year after date of purchase.

A.2.1 Warranty is void if the paint itself is defective.

A.2.2 Any specialty products or colors are not warranted for color shifts.

A.2.3 Warranty for standard four-set primary colors includes peeling, chipping and fading. In no event will the warranty apply to films altered by outside forces. Contact with trailers, other debris or simple accidents void the warranty, and will be the sole responsibility of owner to repair at their cost.

A.3 MINIMIZER warrants that, as long as the products remain on the original vehicle, and are owned by the original purchaser of the MINIMIZER product, Minimizer Fender products will be free from stress cracks, dents and tears under normal operating conditions for the useful life of the product. If the condition is caused by non-normal operating conditions such as a motor vehicle accident, the warranty is inapplicable.

A.4 Minimizer molded tail light sections, provided with some fender products, are water resistant, but are not WATERPROOF. Attachment of the mud flaps, regardless of whether they are DOT-regulated, directly to the bottom of the light box fender will void any and all applicable warranty. MINIMIZER will not be held responsible for damages caused by mud flaps or mud flap installation.

A.5 Any Minimizer Fender product not mounted with Minimizer mounting hardware will void all warranties.
