Interstate-McBee Caterpillar 3406E C15 C16 Inframe Engine Kit MCIF7C2888 0R8333

Interstate McBee Caterpillar 3406E C15 C16 Inframe Engine Kit MCIF7C2888 0R8333

*Please confirm that this Interstate McBee part # is needed for your engine before purchase. If the wrong kit is purchased a member from our team may contact you to help you with the correct item. Or you can call our sales team with your engine serial # and they'd be happy to assist you over the phone!

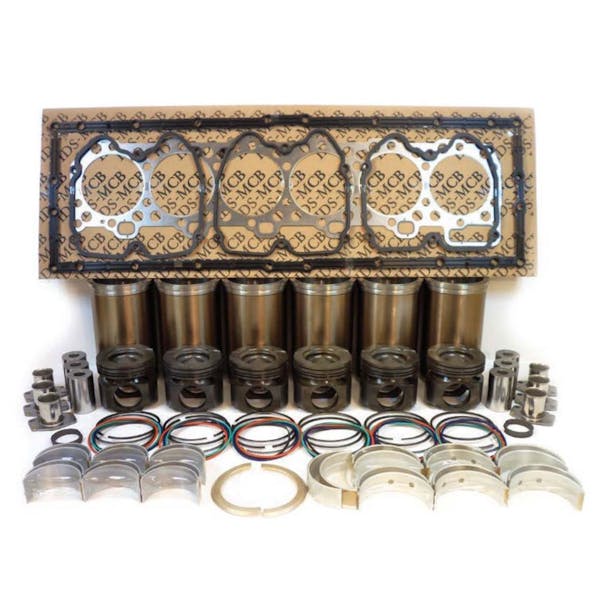

*Image For Reference - Actual Components Received Will Vary Based On Engine Serial Number

• Heavy Duty Inframe Kit

• Fits Caterpillar 3406E, C15, & C16 Engines (Enter Engine Serial Number Above)
• Direct Aftermarket Replacement For OEM #: 0R8333
• Engine Specifications:
• Caterpillar C15 (1999-2007)
• Liter: 15.2
• CID (Cubic-Inch Displacement): 928
• Cylinders: L6
• Bore: 5.4000" - 5.4020"
• Stroke: 6.7320"
• Firing Order: 1-5-3-6-2-4
• Caterpillar C16
• Liter: 15.6
• CID (Cubic-Inch Displacement): 955
• Cylinders: L6
• Bore: 5.4984" - 5.5004"
• Stroke: 6.750"
• Firing Order: 1-5-3-6-2-4
• Caterpillar 3406E (1993-2005)
• Liter: 14.6
• CID (Cubic-Inch Displacement): 893
• Cylinders: L6
• Bore: 5.4000" - 5.4020"
• Stroke: 6.5"
• Compression Ratio: 14.5:1
• Firing Order: 1-5-3-6-2-4
• Tune-Up Specifications:
• Caterpillar C15 (1999-2007)
• Intake Valve Lash: 0.015"
• Exhaust Valve Lash: 0.030"
• Caterpillar C16
• Oil Pressure At Idle: 14.5 PSI Minimum
• Oil Pressure: 88 PSI Maximum
• Intake Valve Lash: 0.027" - 0.033"
• Caterpillar 3406E (1993-2005)
• Intake Valve Lash: 0.012" - 0.018"
• Exhaust Valve Lash: 0.027" - 0.033"
• Induction Hardened Cylinder Liners for Reducing Bore Wear
• Roll Burnished Flange Radius for Increased Flange Strength
• Select Liner O-Ring Seals Materials to Prevent Coolant Leaking & Oil Contamination
• Automatic Bore Honing to Control Finish for Fast Break-In & Oil Control
• Computer Controlled Piston Machining to Maintain Proper Clearances
• Forged Alloy Steel Pistons For Superior Strength
• Graphite Skirt Coating on the Piston for Improved Seizure Resistance
• Profiled Pins Are Hardened and Tempered for Improved Strength and Wear Resistance
• Piston Rings Made From Alloy Cast Iron or Steel Where Required and Coated on Ring Faces With Wear Resistant Materials for Extended Wear Characteristics
• Oil Control Rings Designed With Precise Tangential Tension for Proper Oil Control
• Tri-Metal Construction Rod and Main Bearings For Durability
• McBee Style Caterpillar Custom Gasket Sets
• OEM Gasket Materials Used Throughout For Leak Free Durability
• Graphite Composite Multi-Steel Core Head Gasket With "Floating" Fire Rings to Provide Complete Bore Seal
• High Temperature Seals Incorporated in the Head Gasket
• High Temperature Polymer Water Seals With Stainless Steel Carrier for Durability and Positive Sealing
• External Fuel Injector Seals and Turbo Mounting Gaskets Included in the Gasket Sets For Convenience
• Laser Welded Exhaust Manifold Sleeves for Strength
• Includes:
• (1) In Chassis Gasket Set
• (6) Cylinder Kit
• (2) Thrust Plate
• (6) Rod Bearing
• (7) Main Bearing
• Heavy Duty Engineered To Provide A Long Service Life
• ISO 9001:2015 Certified With Design
• AAR M-1003 Certified
• Sold As A Kit
• Quality Made Product

There may be multiple listings on our site that fit the same model engine but due to the technical nature of engine kits, the correct application and fitment is decided by engine serial #. If it is determined that you will need a different engine kit and there is a price difference, a member of our team will contact you to see if you still wish to proceed. We will do our best to make the buying process as easy as possible for you!
