Interstate-McBee Caterpillar 3406 Inframe Engine Kit MCIF3406SP

Interstate McBee Caterpillar 3406 Inframe Engine Kit MCIF3406SP

*Please confirm that this Interstate McBee part # is needed for your engine before purchase. If the wrong kit is purchased a member from our team may contact you to help you with the correct item. Or you can call our sales team with your engine serial # and they'd be happy to assist you over the phone!

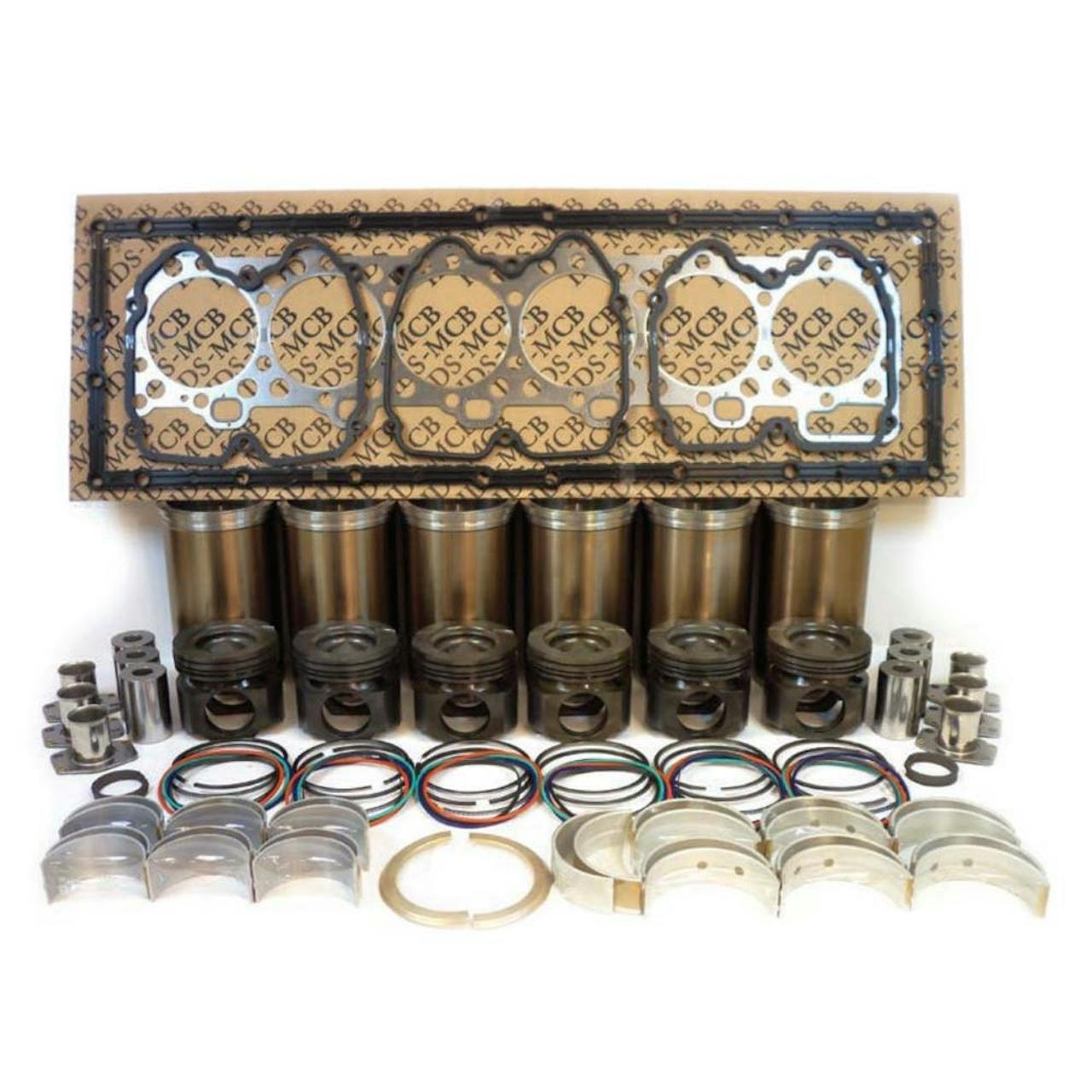

*Image For Reference - Actual Components Received Will Vary Based On Engine Serial Number

• Heavy Duty Inframe Kit

• Fits Caterpillar 3406 Engines (Enter Engine Serial Number Above)
• Engine Specifications:
• Caterpillar 3406
• Liter: 14.6
• CID (Cubic-Inch Displacement): 893
• Cylinders: L6
• Bore: 5.4000" - 5.402"
• Stroke: 6.5"
• Firing Order: 1-5-3-6-2-4
• Caterpillar 3406B (1980-1988)
• Liter: 14.6
• CID (Cubic-Inch Displacement): 893
• Cylinders: L6
• Bore: 5.4000" - 5.402"
• Stroke: 6.5"
• Compression Ratio: 425lbs
• Firing Order: 1-5-3-6-2-4
• Caterpillar 3406C (1995-1999)
• Liter: 14.6
• CID (Cubic-Inch Displacement): 893
• Cylinders: L6
• Bore: 5.3937"
• Stroke: 6.5"
• Compression Ratio: 14.5:1
• Firing Order: 1-5-2-4-3-6
• Tune Up Specifications:
• Caterpillar 3406
• Oil Pressure At Idle: 25lbs
• Oil Pressure: 75lbs
• Intake Valve Lash: 0.015" Cold
• Exhaust Valve Lash: 0.030" Cold
• Caterpillar 3406B (1980-1988)
• Oil Pressure At Idle: 25lbs
• Intake Valve Lash: 0.015" Cold
• Exhaust Valve Lash: 0.030" Cold
• Caterpillar 3406C (1995-1999)
• Intake Valve Lash: 0.012" - 0.018" Cold
• Exhaust Valve Lash: 0.027" - 0.033" Cold
• Includes:
• (2) Thrust Plates
• (6) Rod Bearings
• (7) Main Bearings
• (6) Cylinder Kits
• (1) Gasket Set
• Heavy Duty Engineered To Provide A Long Service Life
• ISO 9001:2015 Certified With Design
• AAR M-1003 Certified
• Sold As A Kit
• Quality Made Product

There may be multiple listings on our site that fit the same model engine but due to the technical nature of engine kits, the correct application and fitment is decided by engine serial #. If it is determined that you will need a different engine kit and there is a price difference, a member of our team will contact you to see if you still wish to proceed. We will do our best to make the buying process as easy as possible for you!

Providing engine parts, fuel injection parts, and gaskets for the diesel and gas industries since 1947, Interstate-McBee strives to provide quality and consistency in their products while offering the most extensive selection in the aftermarket. Following a meticulous manufacturing and remanufacturing process using only the best possible raw materials, all products are guaranteed to be consistent with their industry-leading standards.

California Prop 65 WARNING: This product may expose you to a chemical known to the State of California to cause cancer and birth defects or other reproductive harm

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

*This product ships LTL Freight and the shipping quotes are based on commercial addresses only. If you need a quote to have this delivered to a residential address or farm, please call us so we can provide you with an accurate shipping price. Failing to provide a commercial address could result in delays with processing your order. Please refer to our Shipping Info section at the bottom of our website for more information. All LTL shipments must be inspected prior to signing delivery documentation. Notate damages on the BOL with the freight carrier at time of delivery. Failure to do so will void the claims process and the receiver will be liable for damages.
