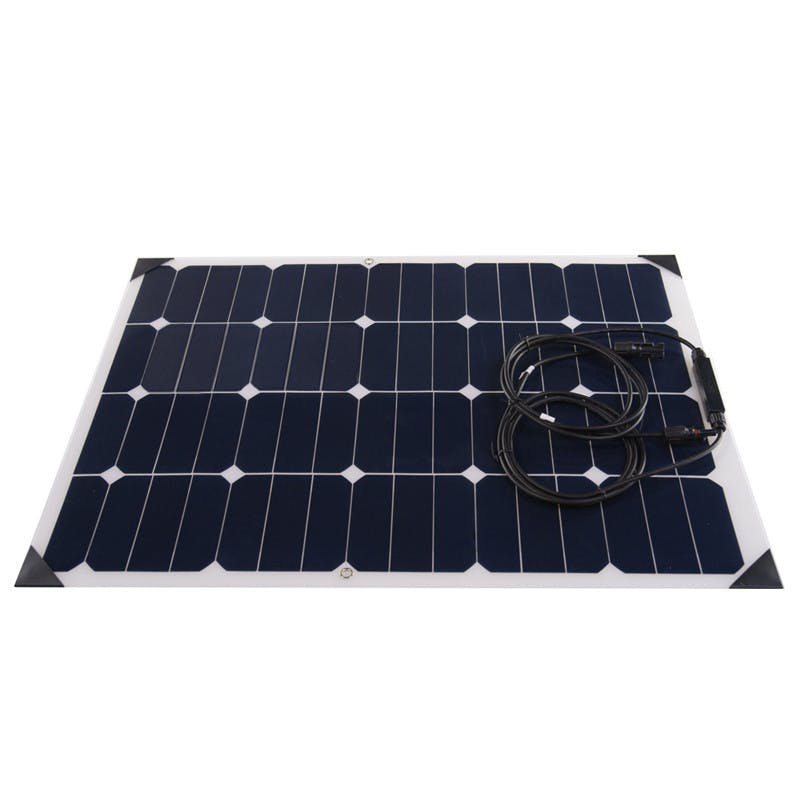

Flexible Power Monocrystalline Solar Panels

Flexible Power Monocrystalline Solar Panels

Introducing the flexible, bendable, thin solar panel with optional charge controller kit for trucks, RVs, boats, toy haulers, vans, cabins or any uneven or curved surface that needs power.

• Constructed With High Quality Material And Advanced Monocrystalline Solar Cells For Efficient Energy Harvest
• Extremely Durable And Rugged
• Ideal For Curved And Uneven Surfaces
• Works With Big Rigs, RVs, Boats, Bus, Vans, Utilities, Golf Carts And More!
• Up To 90⁰ Degree Bend (More Degree Of Bend With The 130 Watt Model Vs. 60 Watt, Smaller Panels Have Less Bend)
• Weather Resistant
• Appropriate For Outdoor Use
• Thickness Compares To The Thickness Of A Nickel
• Pre-drilled Stainless Steel Grommet Holes Aid In Various Installation Methods Such As Zip Ties, Velcro, Straps For Non-permanent Applications
• Lightweight And Super Thin Allowing Use Of A Strong Adhesive Or Industrial Thread For Permanent Mounting Applications
• Bypass Diode Minimizes The Power Drop When Shaded
• Modules Are Independently Tested To Ensure Conformance With Certification And Regulatory Standards
• Manufacturing Facility Certified To ISO 9001 Quality Management System Standards
• Panels Capable Of +/- 3% Power Efficiency Than Rated
• 5 Year Warranty, 10 Year 80% Output

Specifications:

• High Performance: Light Transmittance Up To 93%
• Cell Efficiency: 22.3% (One Of The Highest)
• Module Efficiency: 19.2% (19.6 120W) (One Of The Highest)
• Maximum Power: 60W or 130W Depending On Model
• Tolerance Wattage (e.g. +/- 5%): +/- 5%
• Maximum System Voltage: 600V DC (UL)
• Optimum Operating Voltage (Vmp): 17.5 V Or 22 V
• Optimum Operating Current (Imp): 3.4 A or 5.5 A
• Open-Circuit Voltage (Voc): 21 V or 26.4V
• Short-Circuit Current (Isc): 3.8 A or 5.9A
• Power Tolerance: 0=+5W
• Maximum Fuse Rating: 10 A
• Fire Safety Class: Class A
• Junction Box: IP 67 rated
• Temperature Range: -40⁰F to 185⁰F
• Bendable degree 30⁰ to 60⁰ (3⁰ to 90⁰ 120W)
• Number Of cells: 4 x 16 or 4 x 10
• PV Wire: 10 AWG With MC 4 Male And Female Connectors 76″ Length

Temperature Coefficients ⁰C:

• ISC(%): +2.6
• Voc(%): -50.6
• Prm(%): -.38
• Im(%): +2.2
• Vm(%): -60.8
• Dimensions:
• 60 Watt: 28.5 X 21 X 0.12 Inches
• 130 Watt: 53.1 X 21.25 X 0.12 Inches
• Certifications: CE, ETL, TUV And RoHS
• Sold Individually Or As A Kit (Choose Above)
• Quality Made Product
