Name: Econoride Rolling Lobe Air Spring W013589235 W013589235 64339
Brand: Automann
SKU: 29928
Price: 143.47 USD
Availability: InStock

Econoride Rolling Lobe Air Spring W013589235 W013589235 64339

$143.47

Description
Warranty Information
Additional Information
Reviews
Questions & Answers

Description

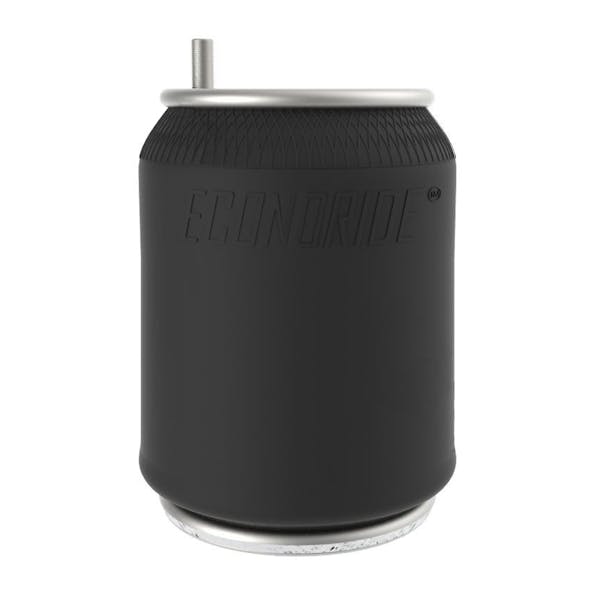

Econoride Rolling Lobe Air Spring W013589235 W013589235 64339

*Please Verify OEM Number Before Purchase

Heavy Duty Rolling Lobe Air Spring
Fits Various Applications
Direct Aftermarket Replacement For OEM #s:

Contitech 64339, 910-19P472
Firestone 8852, W013588852, W01-358-8852, W017038851, W017038854
Goodyear 1R12568, 1R12-568

Automann Bellows#: 1DK23L
Firestone Bellows#: 1T15M-9
Goodyear Bellows#: 566-24-3-066
Contitech Bellows#: 9 10-19
Load (Lbs) @80 PSI: 5700
Load (Lbs) @100 PSI: 7200
Natural Frequency (CPM): 60
Design Height: 15.5"
Bottom Plate Type: Plastic
Top Plate Hole/Stud Quantity: 3
Top Plate Diameter (A): 9.00"
Top Plate C to C Diameter (B): 6.20"
Bottom Plate Stud Quantity: 1
Bottom Plate Diameter (C): 10.24"
Bottom Plate C To C Diameter: N/A
Bottom Part #: BS14552
Bumper: No
Bracket: N/A
Minimum Height: 6.7"
Maximum Height: 24.6"
Maximum Diameter: 12.6"
Sold Individually
Quality Made Product

This Rolling Lobe Air Spring delivers ride comfort, especially when driving through uneven and rugged roads. Made of quality components for high performance, durability, and reliability. Assured to be free of defects and a long-lasting service life.

Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990
