Name: Econoride Rolling Lobe Air Spring 1110.5A-16P523 W013588091 64421
Brand: Automann
SKU: 29921
Price: 148.66 USD
Availability: InStock

Econoride Rolling Lobe Air Spring 1110.5A-16P523 W013588091 64421

$148.66

Description
Warranty Information
Additional Information
Reviews
Questions & Answers

Description

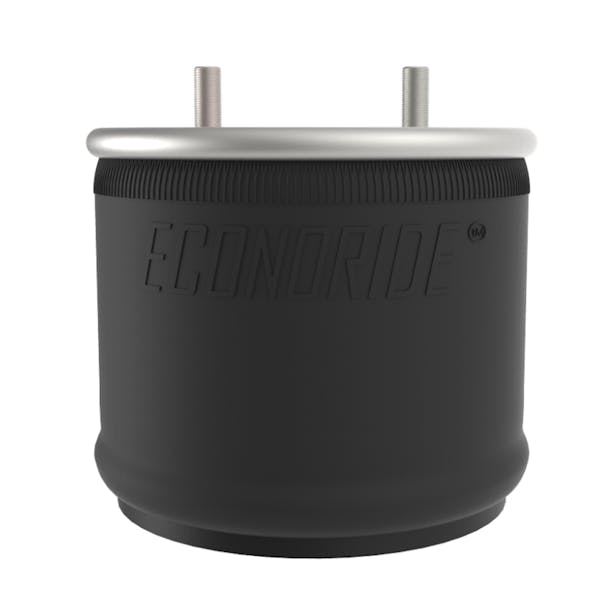

Econoride Rolling Lobe Air Spring 1110.5A-16P523 W013588091 64421

*Please Verify OEM Number Before Purchase

Heavy Duty Rolling Lobe Air Spring
Fits Various Applications
Direct Aftermarket Replacement For OEM #s:

Contitech 1110.5A-16P523, 64421
Firestone 8091, W01-358-8091, W013588091

Automann Bellows#: 1DK28E
Firestone Bellows#: 1T19LC-6, 1T19FC-5
Goodyear Bellows#: 566-28-3-015, 566-28-3-093
Contitech Bellows#: 11 10.5A-16
Triangle Bellows#: 6398
Load (Lbs) @80 PSI: 8100
Load (Lbs) @100 PSI: 10100
Natural Frequency (CPM): 88
Design Height: 10"
Bottom Plate Type: Plastic
Top Plate Stud Quantity: 2
Top Plate Diameter (A): 11.31"
Top Plate C to C Diameter (B): 5.50"
Bottom Plate Stud Quantity: 1
Bottom Plate Diameter (C): 10.16"
Bottom Plate C To C Diameter: N/A
Bottom Part #: BS10179
Bumper: Yes
Bracket: N/A
Minimum Height: 5.1"
Maximum Height: 19.1"
Maximum Diameter: 14.1"
Sold Individually
Quality Made Product

This Rolling Lobe Air Spring delivers ride comfort, especially when driving through uneven and rugged roads. Made of quality components for high performance, durability, and reliability. Assured to be free of defects and a long-lasting service life.

Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.
