690L Premalloy Drop Pintle Hitch Coupling By Premier Manufacturing

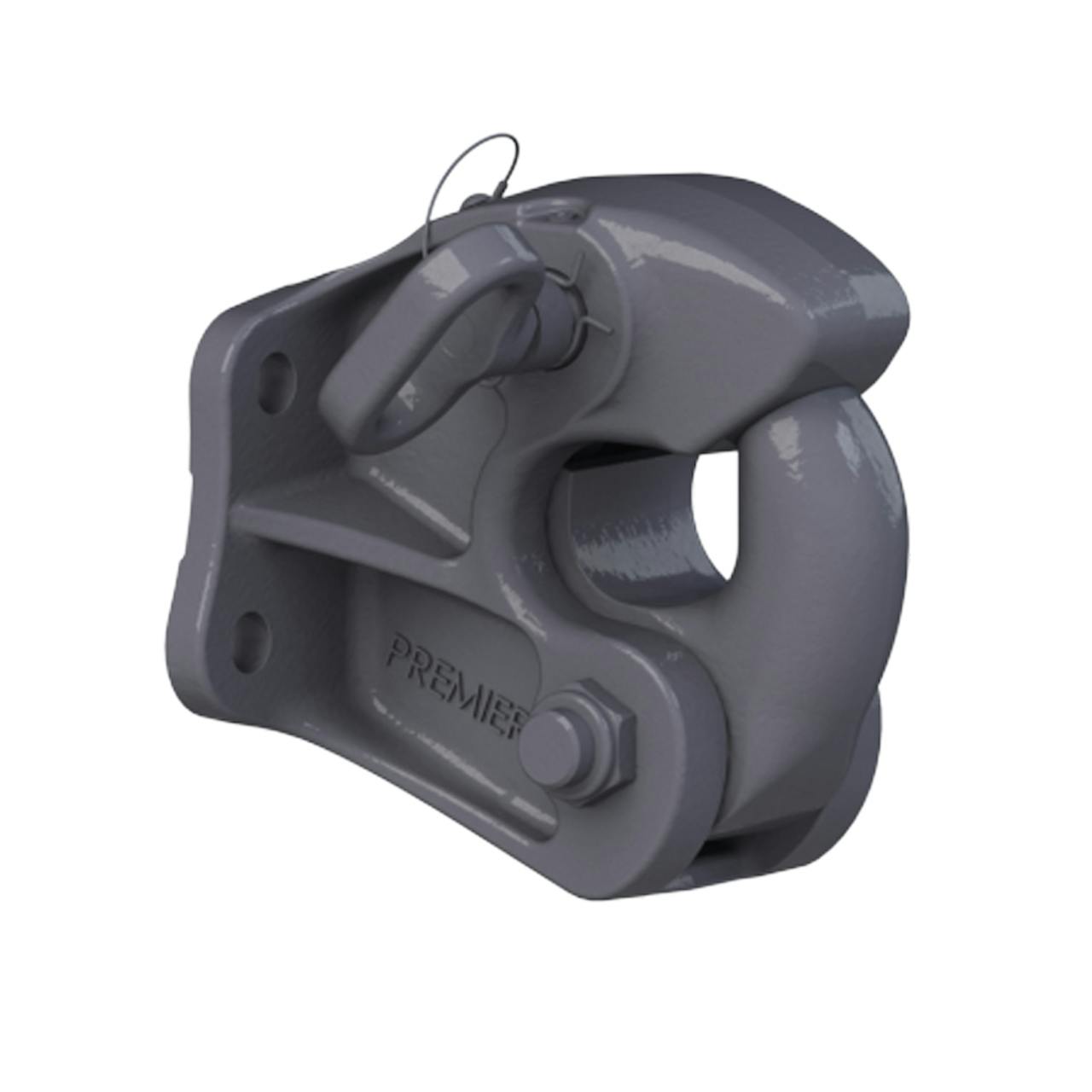

690L Premalloy Drop Pintle Hitch Horn Coupling By Premier Manufacturing

Premier: setting the industry's highest quality and safety standards in tractor-trailer components since 1924!

• 690L Premalloy Drop Pintle Hitch Horn Coupling With Handle On Left
• Fits Perfect For All of Your Mid-to-Heavy-Duty Applications
• Same As Our 590 Series But With Higher Load Capacities
• Made Of Premalloy Materials Making It The Most Heavy-Duty Coupler On The Market
• Premalloy Materials Harden The More Use It Receives Resulting In Longer Service Life
• Undergone Extensive Design And Quality Testing
• Built To Provide The Longest Life Service On The Market

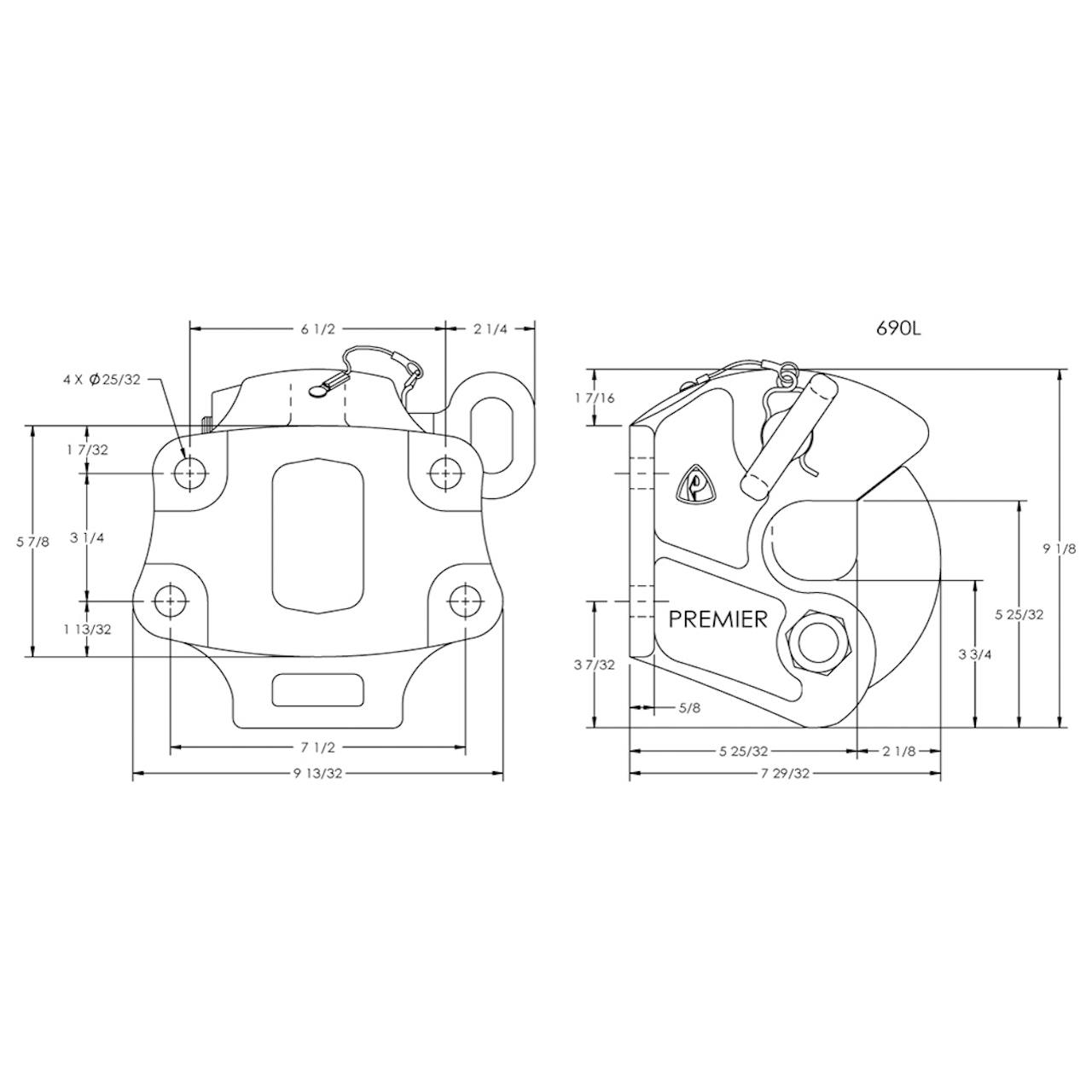

• Weight Specifications & Dimensions:
• Maximum Gross Trailer Weight: 90,000 lbs. (40,823 kg)
• Maximum Tongue Weight: 18,000 lbs. (8,165 kg)
• Upward Vertical Capacity: 40,000 lbs. (18,144 kg)
• Maximum Eye X-Section: 1 11/16 in. (43 mm)
• Maximum Eye Opening: 2 3/8 in. (60 mm)
• Unit Weight: 41.8 lbs. (19 kg)
• Both SAE J847 & SAE J849 Compliant
• Proudly Made In The USA
• Sold Individually
• Quality American-Made Product

Introducing Premier's heavy-duty pintle hitches! Made right here in the USA, Premier Manufacturing's couplers have undergone extensive design and testing to meet SAE requirements and provide a reliably long service life. Trailer safety has always been their #1 priority! Using the latest in design software, all of Premier's couplings and accessories are guaranteed to last longer and hold faster than industry standards. These pintle hooks are designed to be more driver friendly, cost effective and carry higher capacity ratings than cut-rate substitutes.
