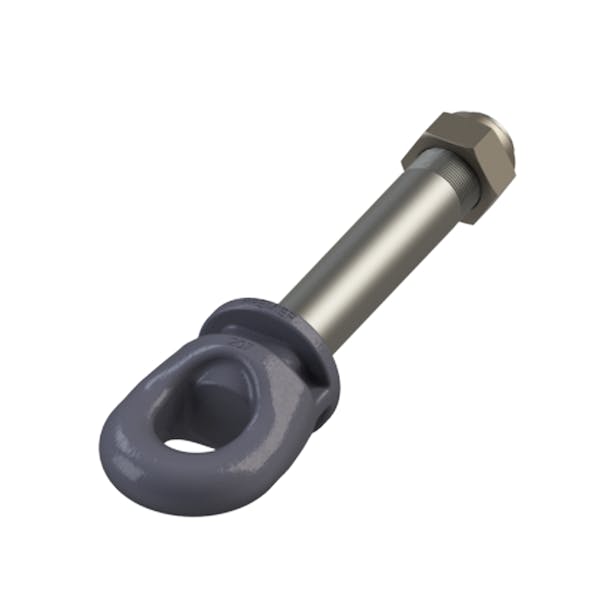

  • 207 Swivel Drawbar Eye - Default

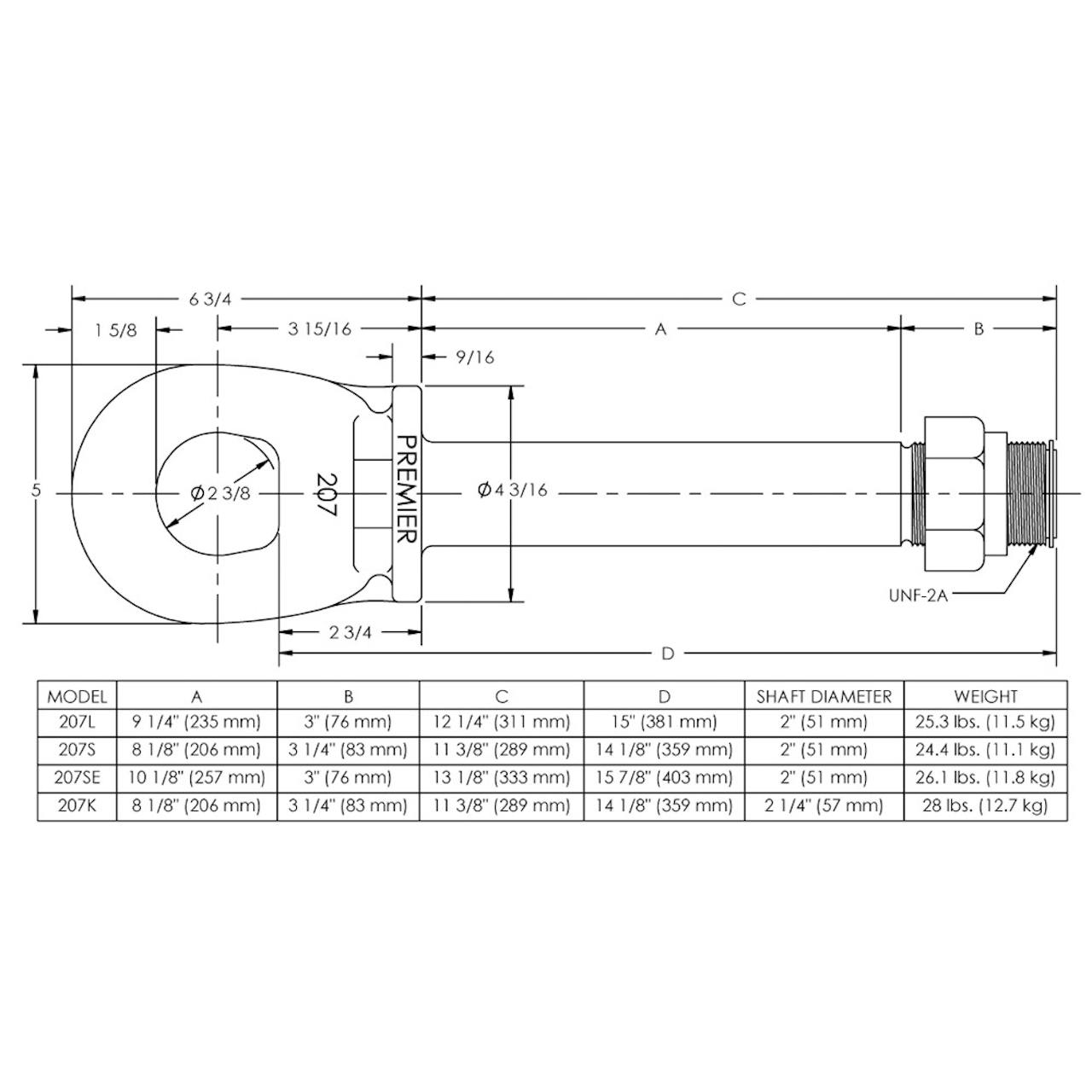

  • 207 Swivel Drawbar Eye - Dimensions

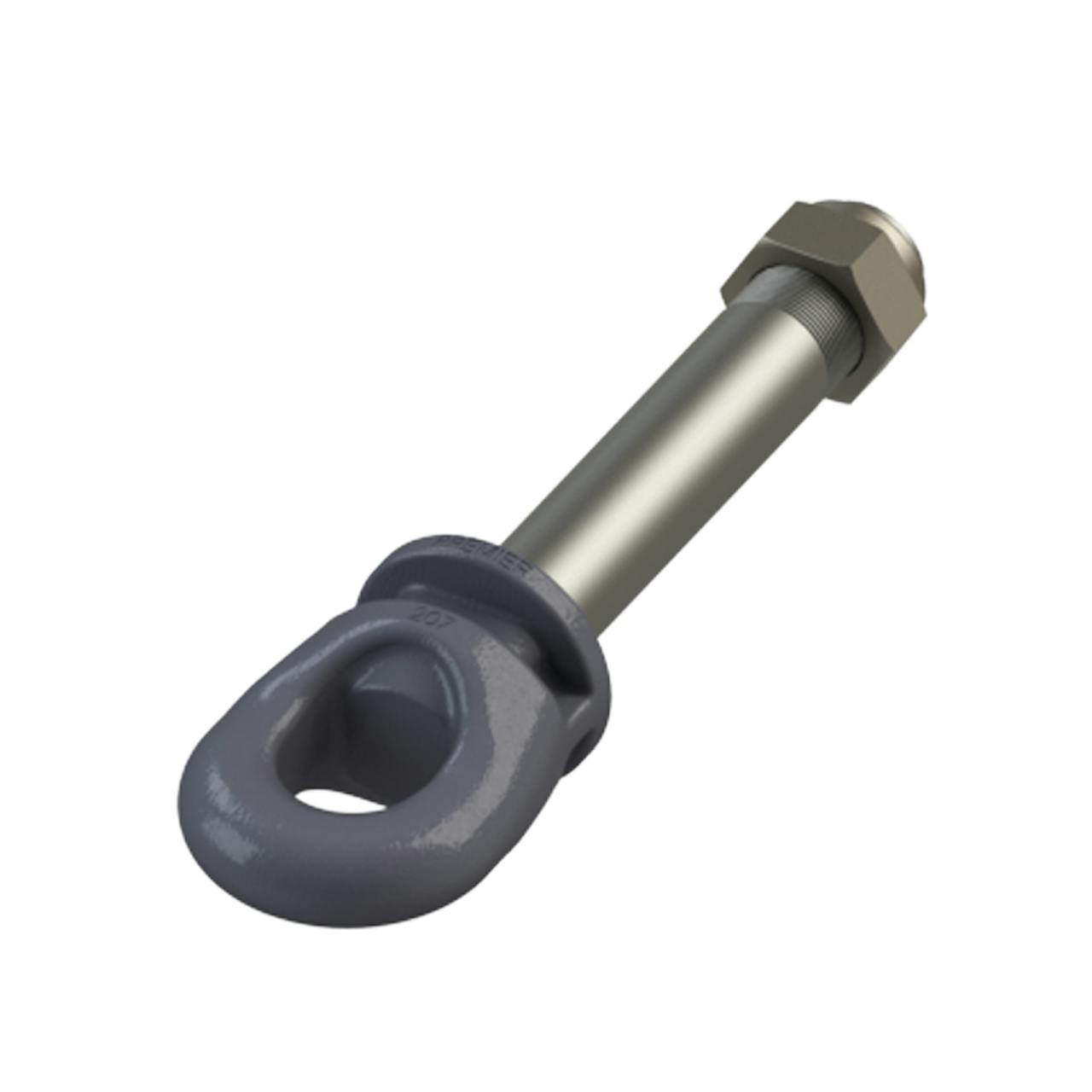

207 Swivel Lunette Ring Drawbar Eye By Premier Manufacturing

$359.95

Order Now, Pay Later with Affirm Logo Learn more
SKU:
38046
Condition:
New
Shipping:
Calculated at Checkout
In Stock!
SKU:
38046
Shipping:
Calculated at Checkout
Frequently bought together:

Description


207 Swivel Lunette Ring Drawbar Eye By Premier Manufacturing

Premier: setting the industry's highest quality and safety standards in tractor-trailer components since 1924!

*The 207 swivel drawbar eyes are only to be used with front end housings from Premier Manufacturing with a maximum gross trailer weight of 90,000 lbs

  • 207 Series Swivel Drawbar Eye
  • Perfect For A Variety Of Mid-Duty Applications
  • Undergone Extensive Design And Quality Testing
  • Built To Provide The Longest Life Service On The Market
  • Various Sizes Available (Choose Above)
    • Model 207L : 2 3/8″ ID, shaft 2 OD x 12 1/4″ L
    • Model 207S : 2 3/8″ ID, shaft 2 OD x 11 3/8″ L
    • Model 207SE : 2 3/8″ ID, shaft 2 OD x 13 1/8″ L
  • Weight Specifications & Dimensions:
    • Maximum Gross Trailer Weight: 90,000 lbs. (40,823 kg)
    • Maximum Tongue Weight: 2,500 lbs. (1,134 kg)
    • Inside Diameter: 2 3/8 in. (60 mm)
    • Unit Weight: 4.0 Lbs.
  • Both SAE J847 & SAE J849 Compliant
  • Proudly Made In The USA
  • Sold Individually
  • Quality American-Made Product

Introducing the heavy-duty, highest quality Drawbar Eye on the market! Made in the USA, meeting SAE standards, Premier Manufacturing's Heavy Duty Couplers, Drawbar Eyes, Receivers, Jacks and Wear Gages have undergone extensive design and testing to provide a quality long service life. Using the latest in Computer Aided Design and Analysis Software, all couplings and its' accessories are guaranteed to last longer with trailer safety being the #1 priority. Our Pintle hooks and products are designed to be more driver friendly, cost effective with higher capacity ratings all proudly made in the USA.

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

View AllClose

Warranty Information

We warrant all Premier products to be free from defects in material or workmanship for one year. We will repair or replace, at our option, any Premier product which our examination reveals to be defective, provided that the product is returned to our factory in Tualatin, Oregon, transportation prepaid, within one year of purchase by the first retail purchaser. Our warranty does not extend to products which have been subject to misuse, neglect, improper installation, maintenance or application, nor does our warranty extend to products which have been repaired or altered outside of Premier’s facility unless the repair or alteration has been expressly authorized in writing by Premier. This warranty is in lieu of all other warranties, express or implied, and excludes warranties of merchantability, fitness for a particular purpose and otherwise, and in no event will Premier be liable for incidental, special, contingent or consequential damages.
