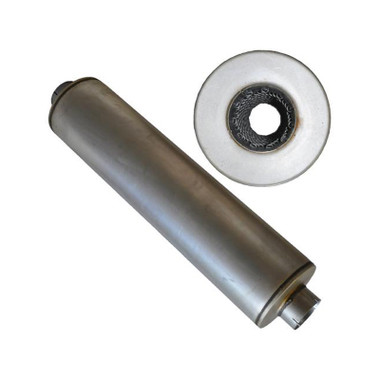

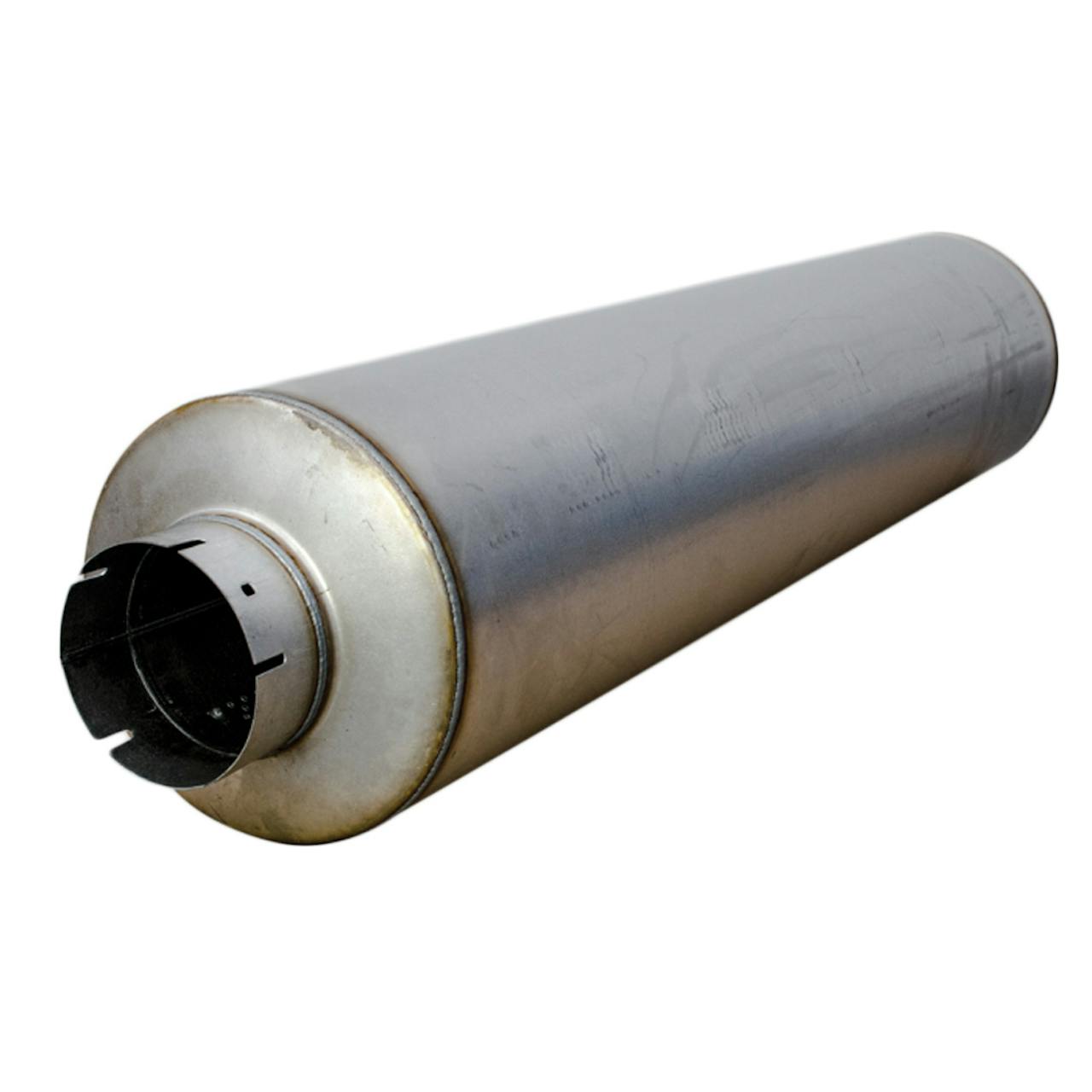

10" Muffler by Donaldson DNM100465 504886C1 2191M100465

10" Muffler by Donaldson DNM100465 504886C1 2191M100465

*Please Verify OEM Number Before Purchase

• Heavy Duty Muffler
• Cross Reference Numbers:
• Walker 22920
• Nelson 86682M
• TruckEx 3699
• Inlet Diameter: 5.03"
• Outlet Diameter: 5.03"
• Body Diameter Maximum: 10.06"
• Body Length: 44.44"
• Overall Length: 51"
• Rated Flow (LR): 1610 cfm
• Rated Flow (MR): 2274 cfm
• Rated Flow (HR): 2790 cfm
• Back Pressure (Low-Range): 0.31" Hg
• Back Pressure (Mid-Range): 0.62" Hg
• Back Pressure (High-Range): 0.94" Hg
• Attenuation (LR): 10 dBA
• Attenuation (HR): 15 dBA
• Style: 1
• Sold Individually
• Quality Made Product

Direct Aftermarket Replacement For OEM #s: 3699, 3699Q, M10130, M10682, 14354, 14534, B500500, 5122291, 1522291, 1522291, 122807, 21078, DCM100465, MFM100465, MPM100465, 87500130, 87500130Q, E112, 551045, E05S5230CA, D7HT5230BEA, D7HT5225CLA, E2HZ5230L, D8HT5230CA, D8HT5230BA, 9575MPM100465, 9575MPM100465P, D7HT5230GEA, D7HT5230FRA, D8HZ5230AF, D8HZ5230B, D8HZ5230AT, D8HZ5230F, E2HT5225BGA, E2HT5225BCA, D0HT5225CLA, E2HT5225L, E2HT5225BMA, E2HT5225BM1A, 9575M100465, DNM100465, A04118430, A0411843, A04118400, A04116940, A04120940, A0412094, A04129660, A0412966, A04125560, 7624000049, 7642000603, 31165, 57037558, 504886C1, 501464C1, 486118C1, 486110C1, 486109R91, 485934C1, DCM100465, DONM100465, 2585727C1, 586607C1, 586606C1, 7170177, 2191M100465, 2ME49301P11, 2ME29301P1, 2ME29301P13, 2ME29301P14, 2ME29301P22, 2ME49301P2, 2ME49301P4, 2ME49301P7, 2ME49601P7, 7642000603, 86682M, 86195M, 86130M, 1488910, 107789B, 109820B, 69941BX, 69941B, 10028, 10020, M5010, 225021, 1901353, 1901352, 1901382, 1909892, 1901107, 2403144, 7170177, 135511, M5510SP, 3699M, 3699, 1111110, 230013807, 49045022, 49039309, 49045022, 49044073, 230010064, V1111110, 230010056, 1111110, V8056009, 230010070, 230013411, 230013420, 230013410, 22963, 22925, 22924, 22920, 230013420, 49045022, 49044073, MPM100465, 49044073

As one of the largest providers of unique filtration technologies and high-quality filters and parts, Donaldson has been solving customers' complex filtration needs for over 100 years. With durable, rugged filters that are built for the long haul, Donaldson offers the most comprehensive line of replacement filters that are manufactured to the same quality standards as the original!

Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990
